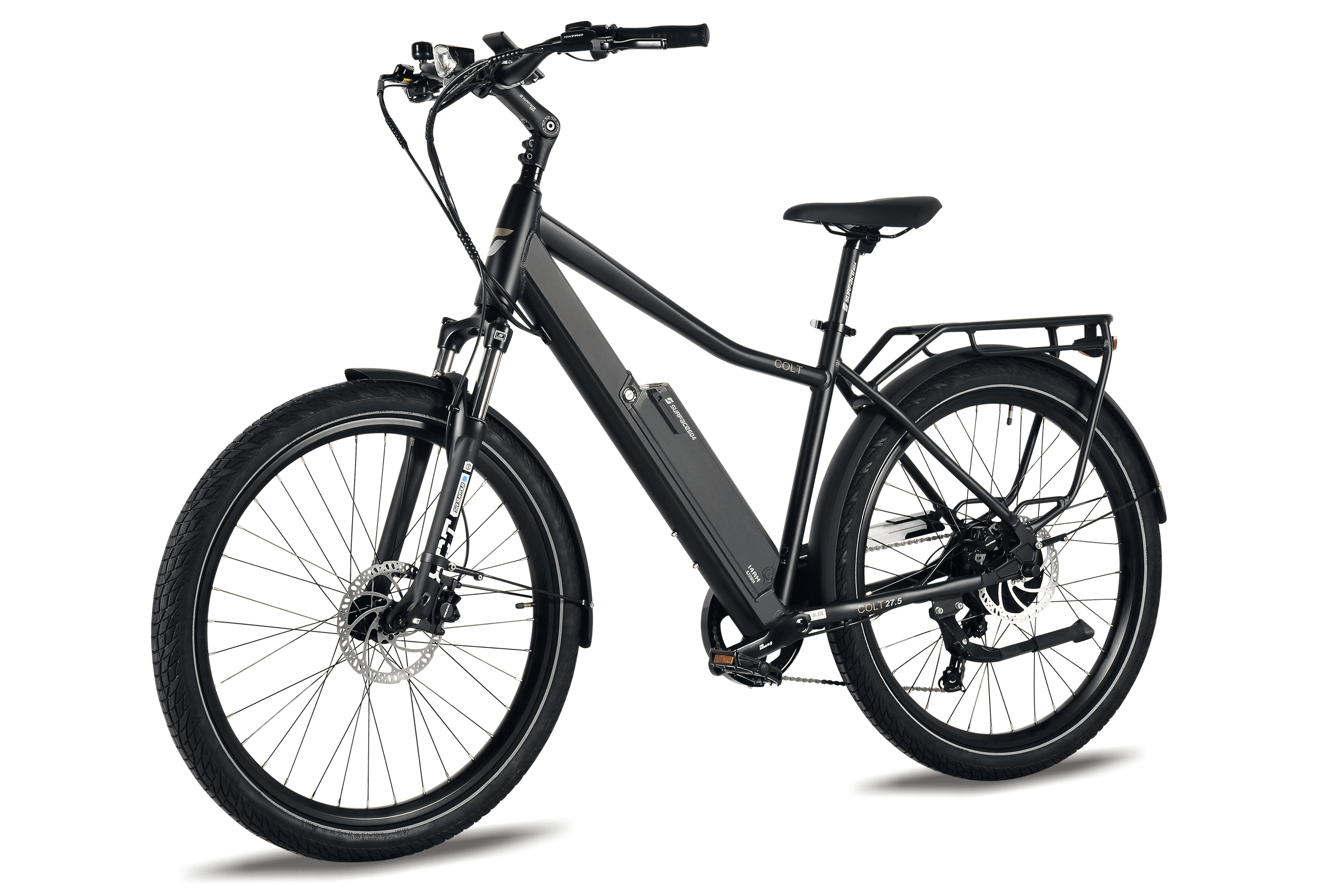

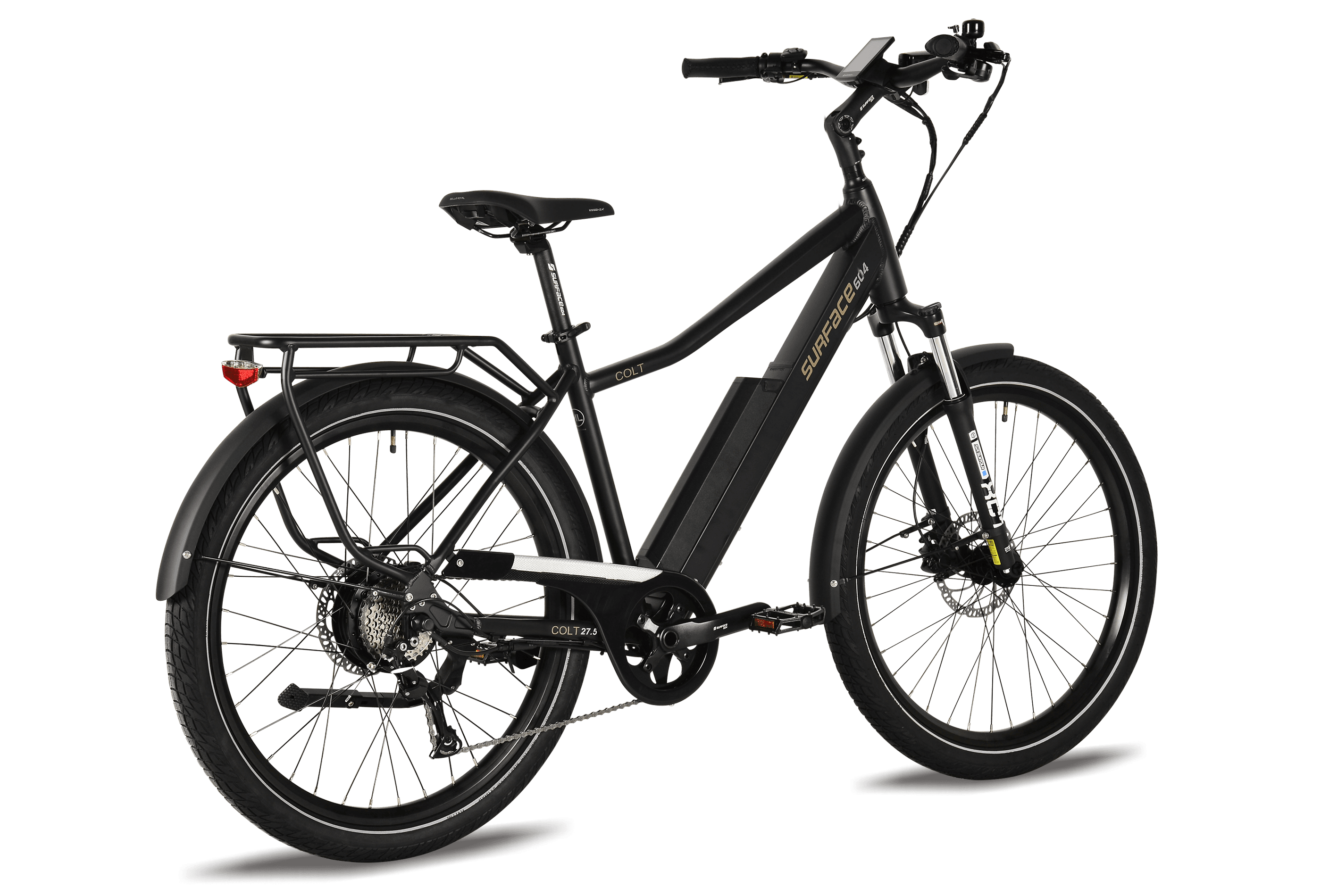

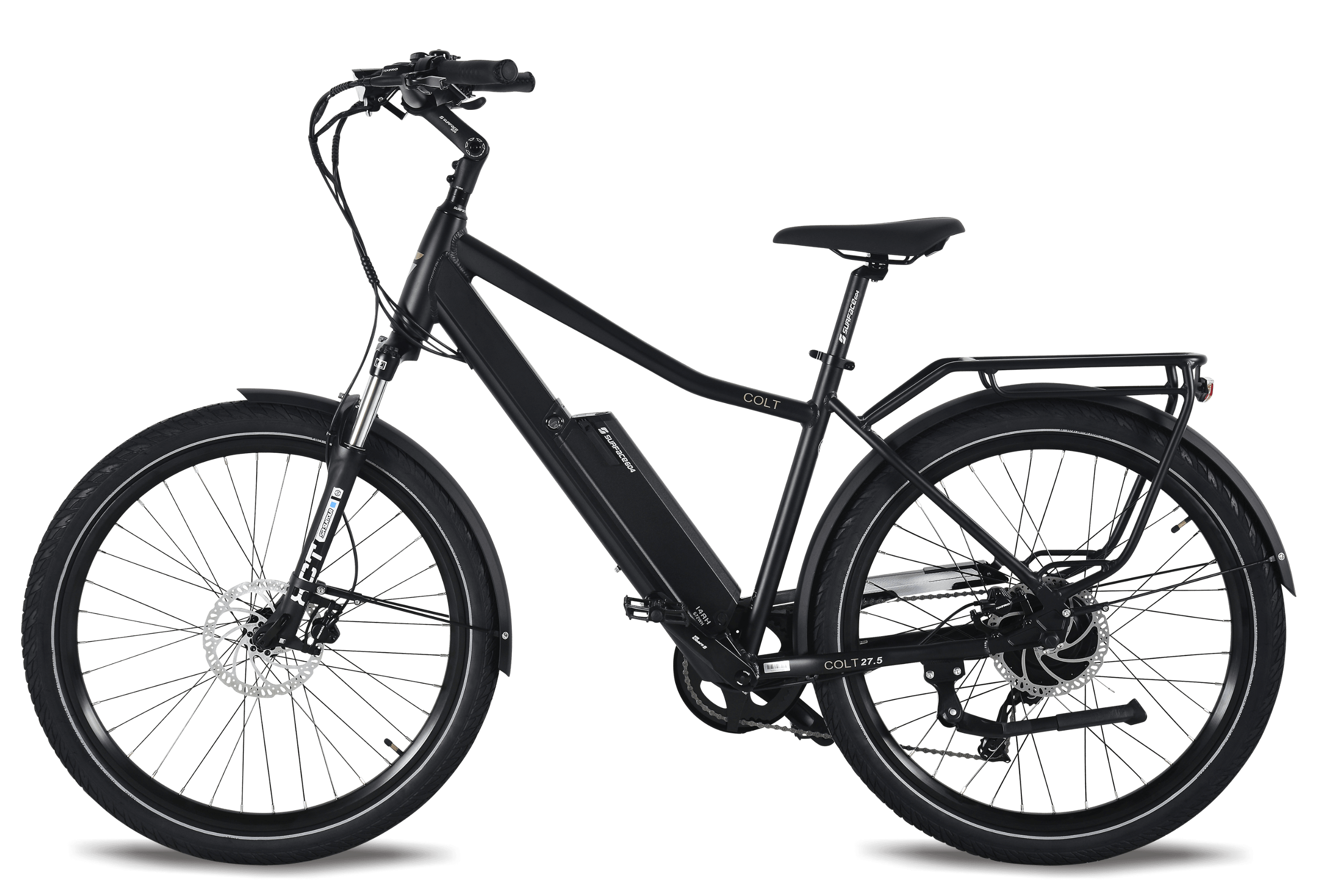

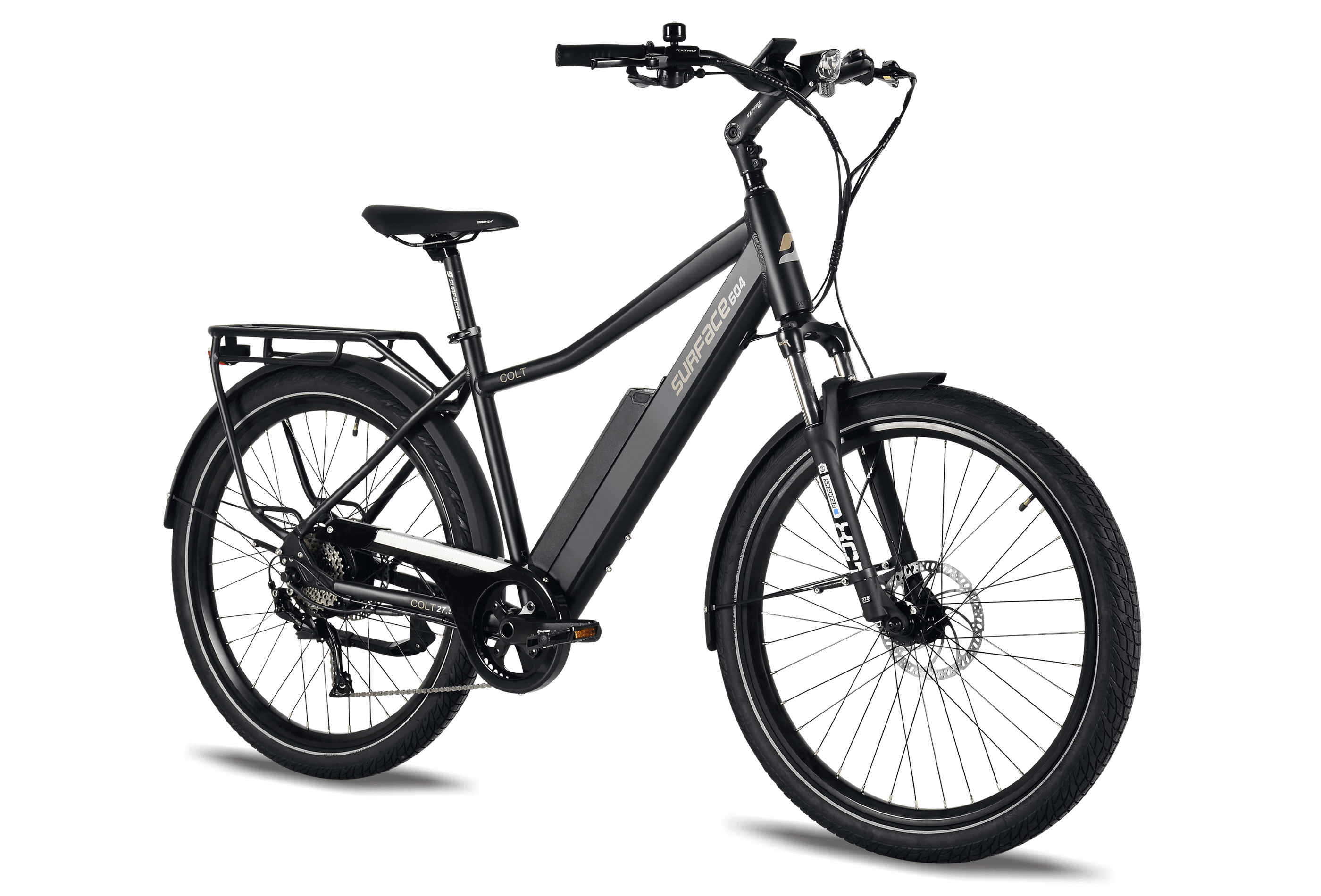

COLT
A comprehensive do-it-all commuter that offers slick, agile riding in a comfortable position. Comes with Suntour XCT front suspension, and a super-strong hydroformed aluminum frame. Read more ↓
Size S/M

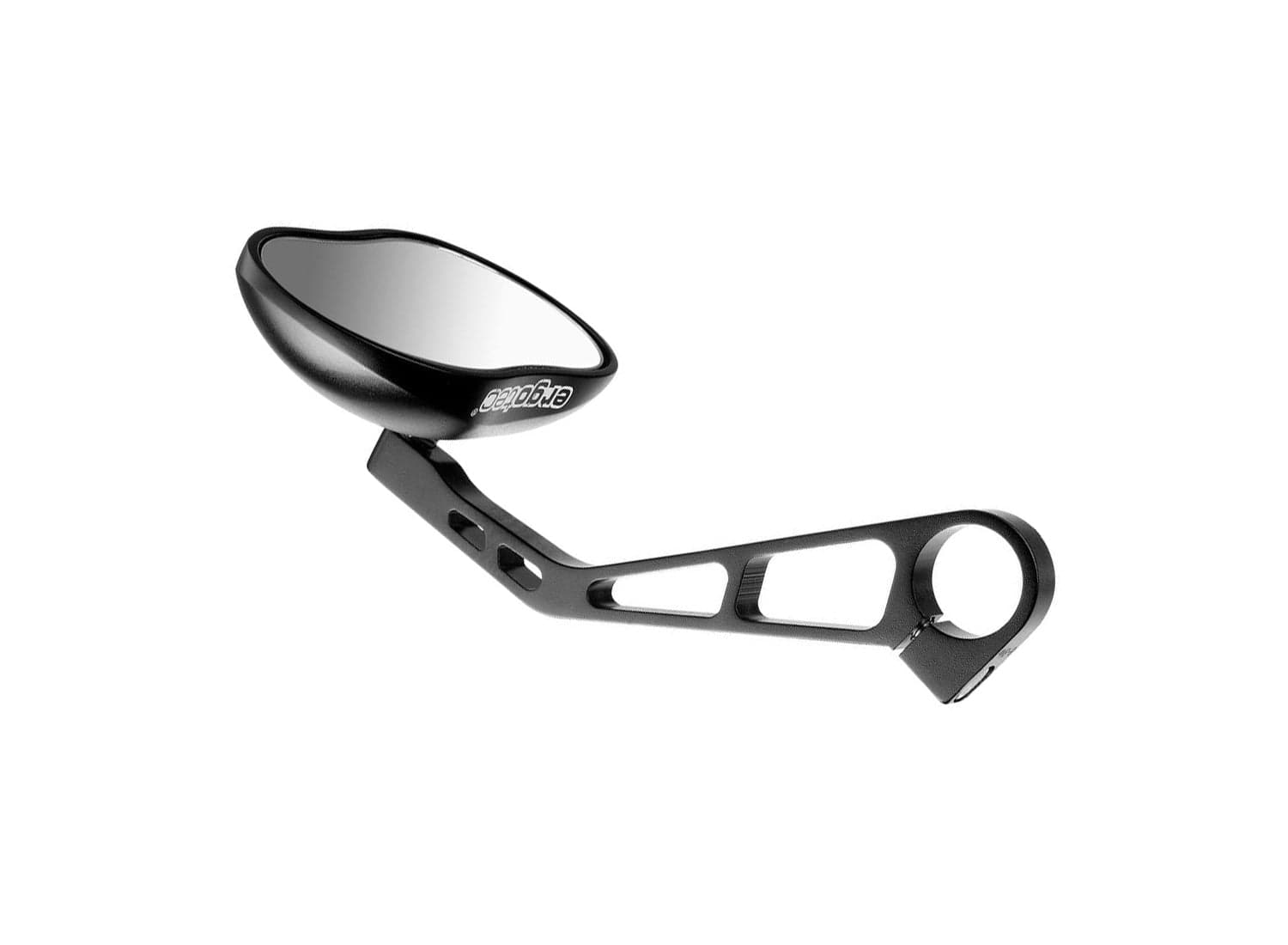

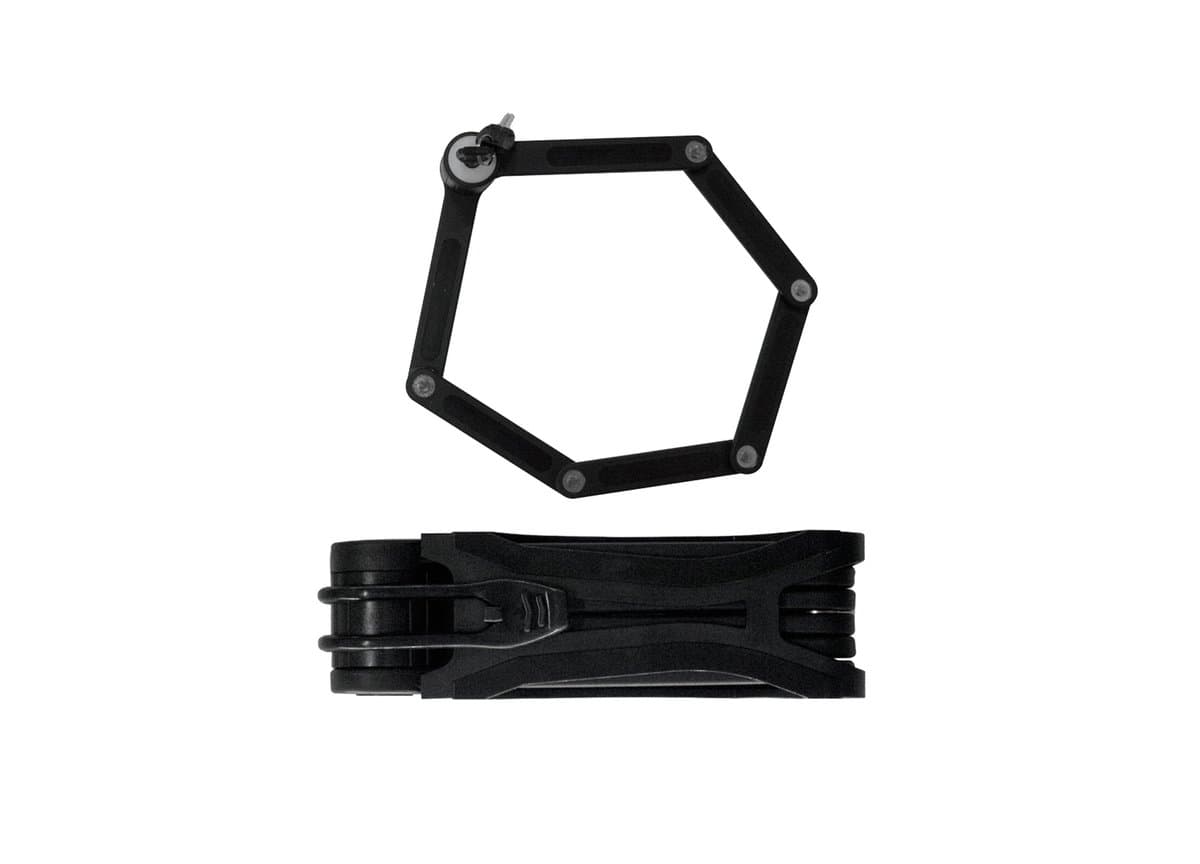

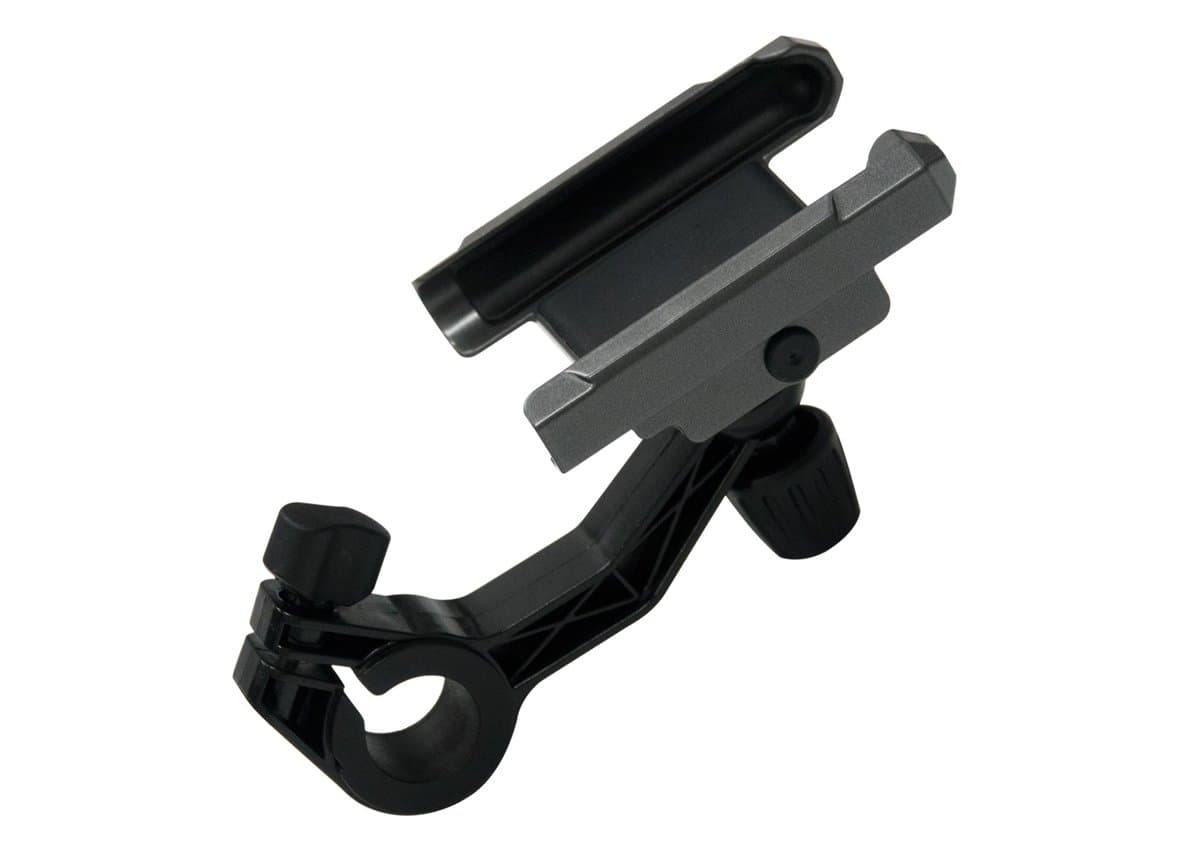

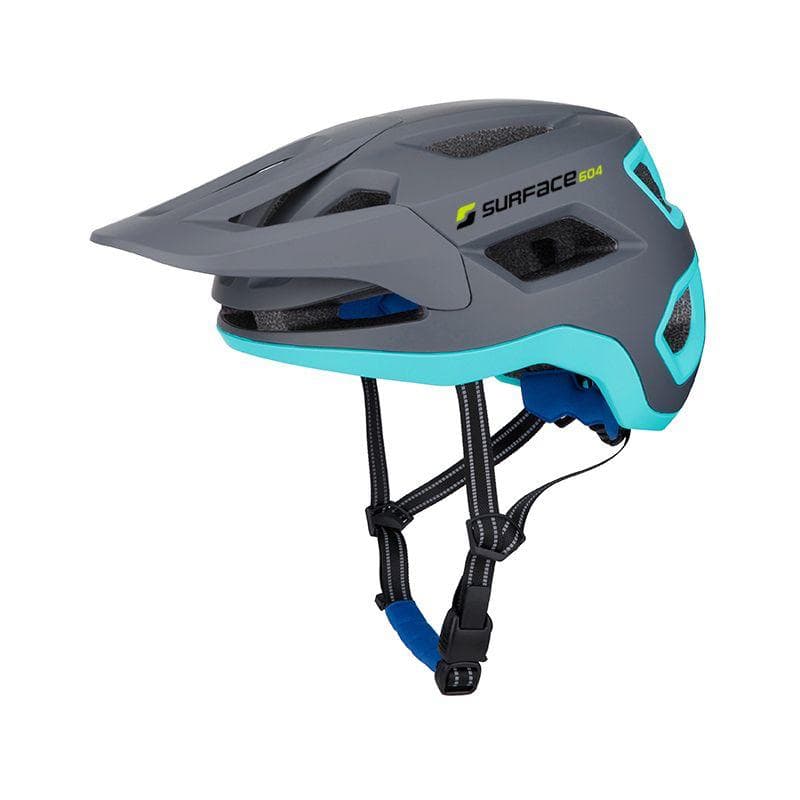

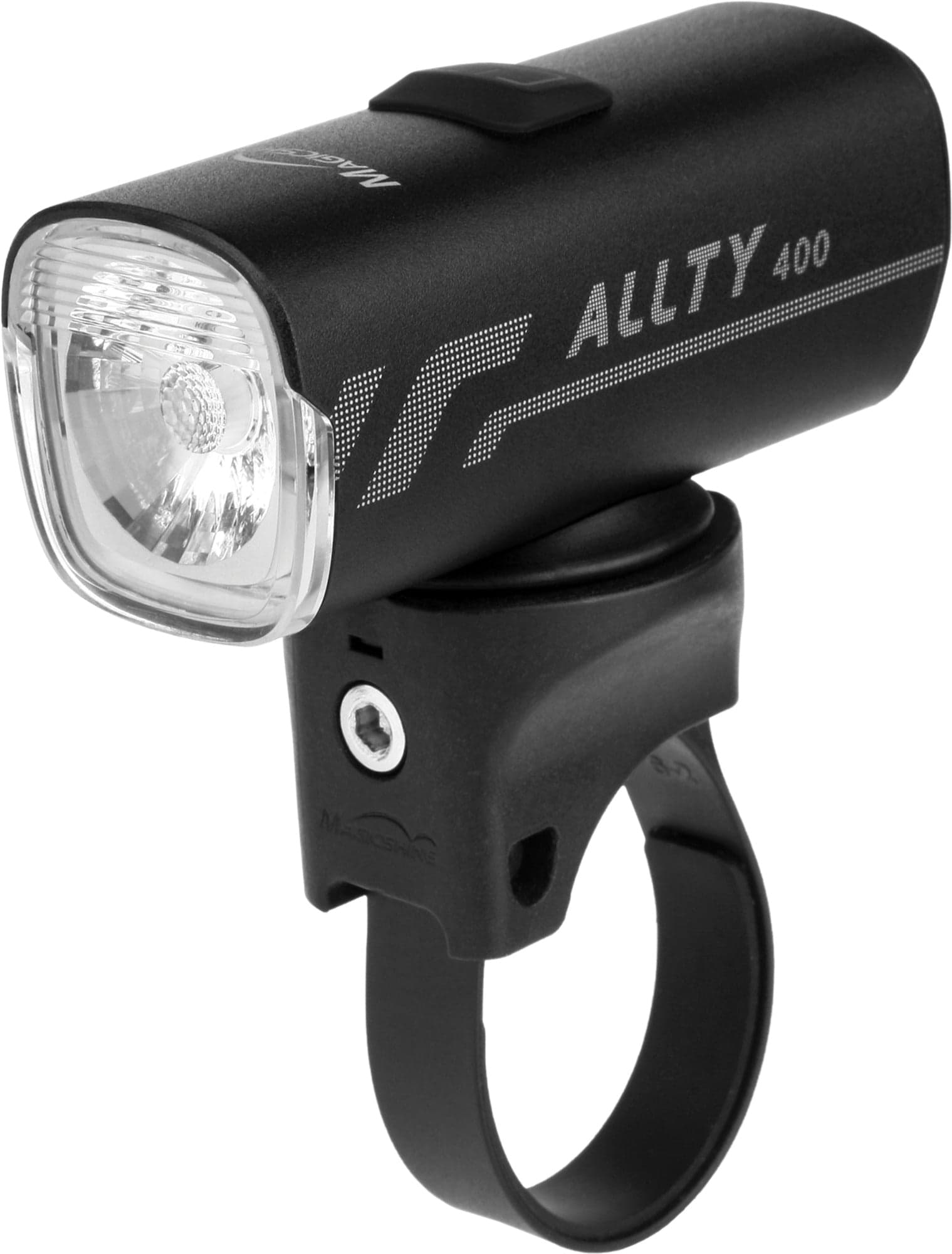

Add-ons our mechanics recommend.
Hand-picked by the eBikes Calgary shop floor and fitted free when you collect.
Built for Calgary roads.
A comprehensive do-it-all commuter that offers slick, agile riding in a comfortable position. Comes with Suntour XCT front suspension, and a super-strong hydroformed aluminum frame.
A comprehensive do-it-all commuter that offers slick, agile riding in a comfortable position. Comes with Suntour XCT front suspension, and a super-strong hydroformed aluminum frame.
Why this bike
- 150 km
Goes the distance
Calgary-distance range on a single charge. Pathway routes, side streets, and the LRT haul home — all in one tank.
- rack
Hauls the load
Built for cargo. Whether it's the weekly Costco run or a kid-seat commute, the frame and rack do the work.
- 2 yr
In-house warranty
We sell it, we service it. Two-year warranty backed by our own mechanics — walk in, get help.
Specifications.
Full factory spec sheet, grouped for scanning.
Motor & Performance
- Motor
- 500W (Peaks At 750W) Bafang Geared Hub Brushless Motor

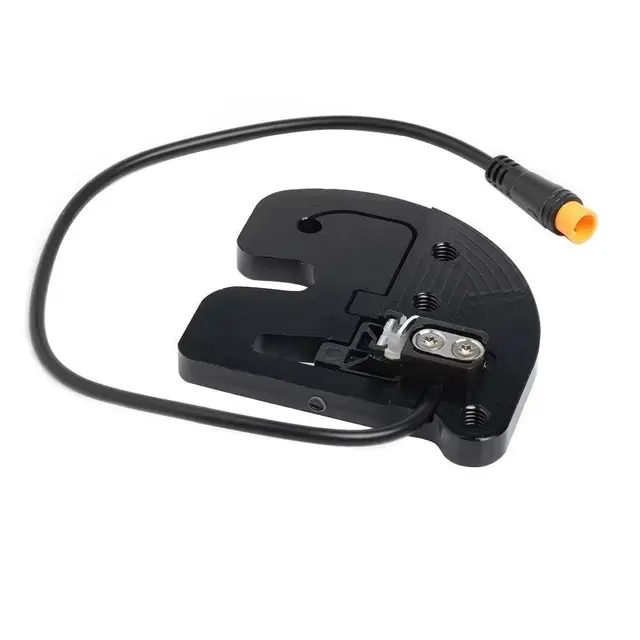

- Drive mode
- Drop Out Torque Sensing Pedal Assist with a Throttle
- Torque
- 65Nm of Torque
- Throttle
- Thumb Push Activated Throttle
- Controller
- SURFACE604 Designed 12 MOS 48V 500W 25Ah, Smart Controller
- Top speed
- 20mph (32kmh)*, Comes as Class 2 · (Unlocked) 28mph (45kmh), as Class 3
- Motor harness
- 30Ah, can handle up to 120C current (upgraded)
Battery & Display
- Battery
- Included: 48V 20Ah / 960Wh · Samsung lithium-ion 21700 cells
- Range (rated)
- Upto 90mi (150km) with a 48V20Ah Battery
- Charge time
- 3-4 Hours for a Full Charge from Empty

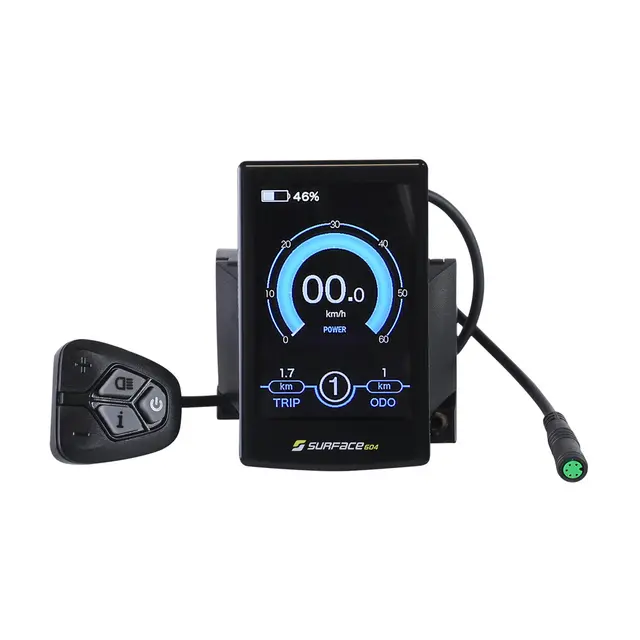

- Display
- SURFACE604 Color LCD Display with USB Jack · Bigger display: 3.5"
- Battery weight
- 20AH battery 4.65KG/10lbs
Frame & Suspension

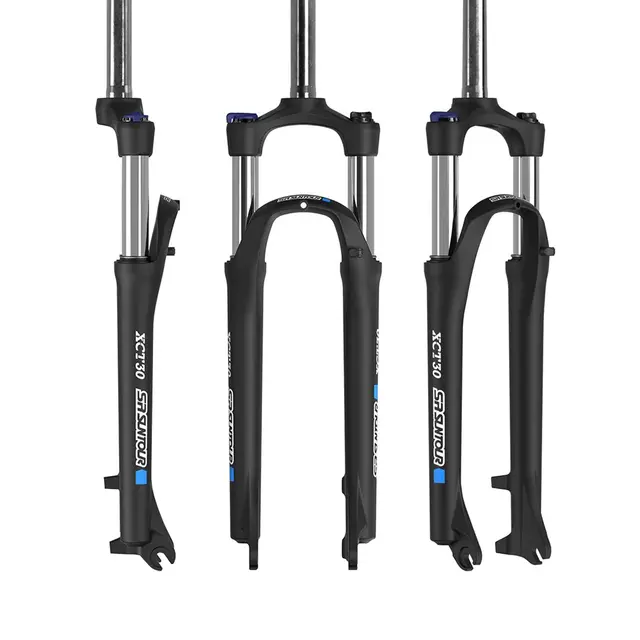

- Fork
- SR SUNTOUR XCM 27.5, 80mm with Quick Release
- Frame notes
- Straight steerer Headtube, Custom Reinforced Battery Mounts, Internal Cable Routing, Post Mount Brakes
- Frame material
- 6061 Aluminum Alloy
- Standover
- Small-Medium: 28.5” (724mm)" · Medium-Large: 30” (762mm)
- Rider height
- Frame Sizes: S/M - 17.5", M/L - 19.5" · For Riders: S/M 5’2”-5’7”, M/L 5’8” - 6’6”
- Weight (rated)
- 27.75KG/61lbs (20AH)
- Max load (rated)
- 300lbs (136kg)
Drivetrain

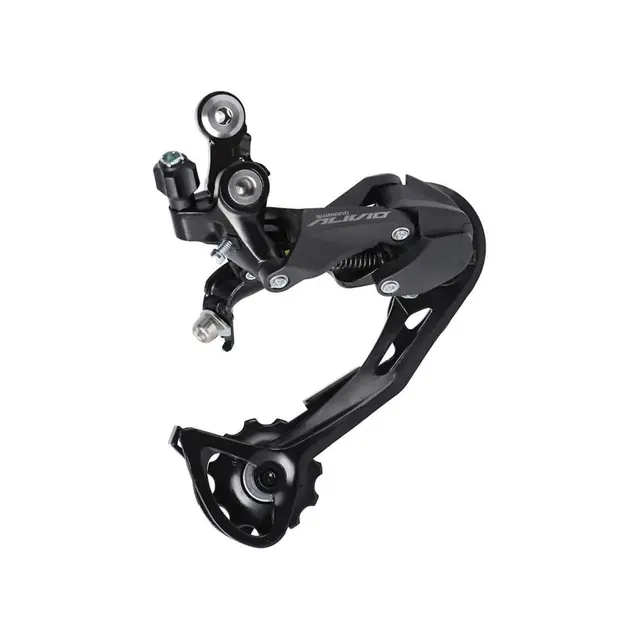

- Derailleur
- SHIMANO ALIVIO 9-Speed
- Cassette
- SHIMANO 11-36T Cassette
- Shift levers
- SHIMANO ALIVIO
- Crank set
- SAMOX 42T Front Sprocket
- Bottom bracket
- SAMOX Sealed Bottom Bracket
- Pedals
- WELLGO Platform, with Die Casting Body
- Chain
- KMC 9-Speed
Brakes & Wheels

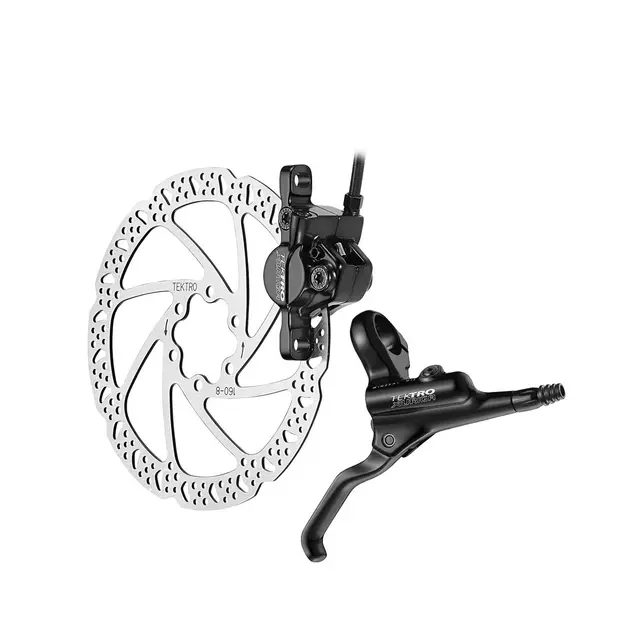

- Brakes
- TEKTRO Auriga Hydraulic Disc Brakes · Post Mount, with Motor Inhibitors
- Rotors
- 180mm Front/Rear x 2.34mm Thick

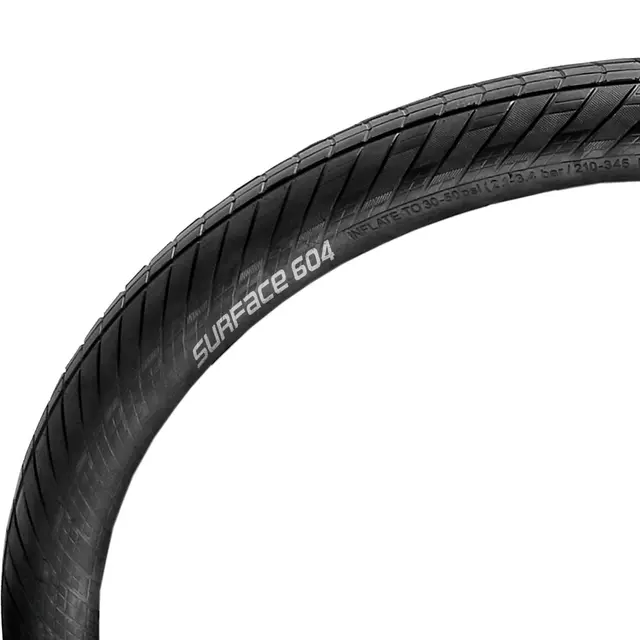

- Wheels & tires
- 27.5" X 2.4" Custom S604 Panaracer Tires With Puncture · Protections With Reflective Sidewall
- Rims
- Aluminum Alloy Double Wall Rim, 27.5”x13Gx36H
- Hubs
- Surface604 Aluminum
Lighting & Extras
- Lights
- BÜCHEL "Secu Forte" LED Head Light with 150 lumens and BÜCHEL Rear LED light
- Stem
- SATORI Up2+, Adjustable
- Handlebar
- PROMAX Aluminum, 30mm Rise With 15° Backsweep · 700mm Wide
- Seatpost diameter
- 30.4mm
- Saddle
- Selle Royal Gel Saddle "Essenza Plus" · with elastomer (Relaxed) · suitable for City/Tour use · FLEXITE shell features a unique indented structure, · adding superb flexibility and shock absorption · Adjustable up to 9 degrees.
- Kickstand
- Adjustable Heavy-Duty Aluminum
- Standard features
- Welded Rear Rack, Adjustable Kickstand · Chain Guide, Water Bottle Bosses
- Optional upgrades
- NCX Suspension Seat Post
- New for this year
- Bigger wheels, wider tires for smoother ride · New handle bar - more comfortable grip and seating position
More specs
- Motor Watts
- 500
- YouTube Review
- ITVDSgg7ZQs
