TRIO

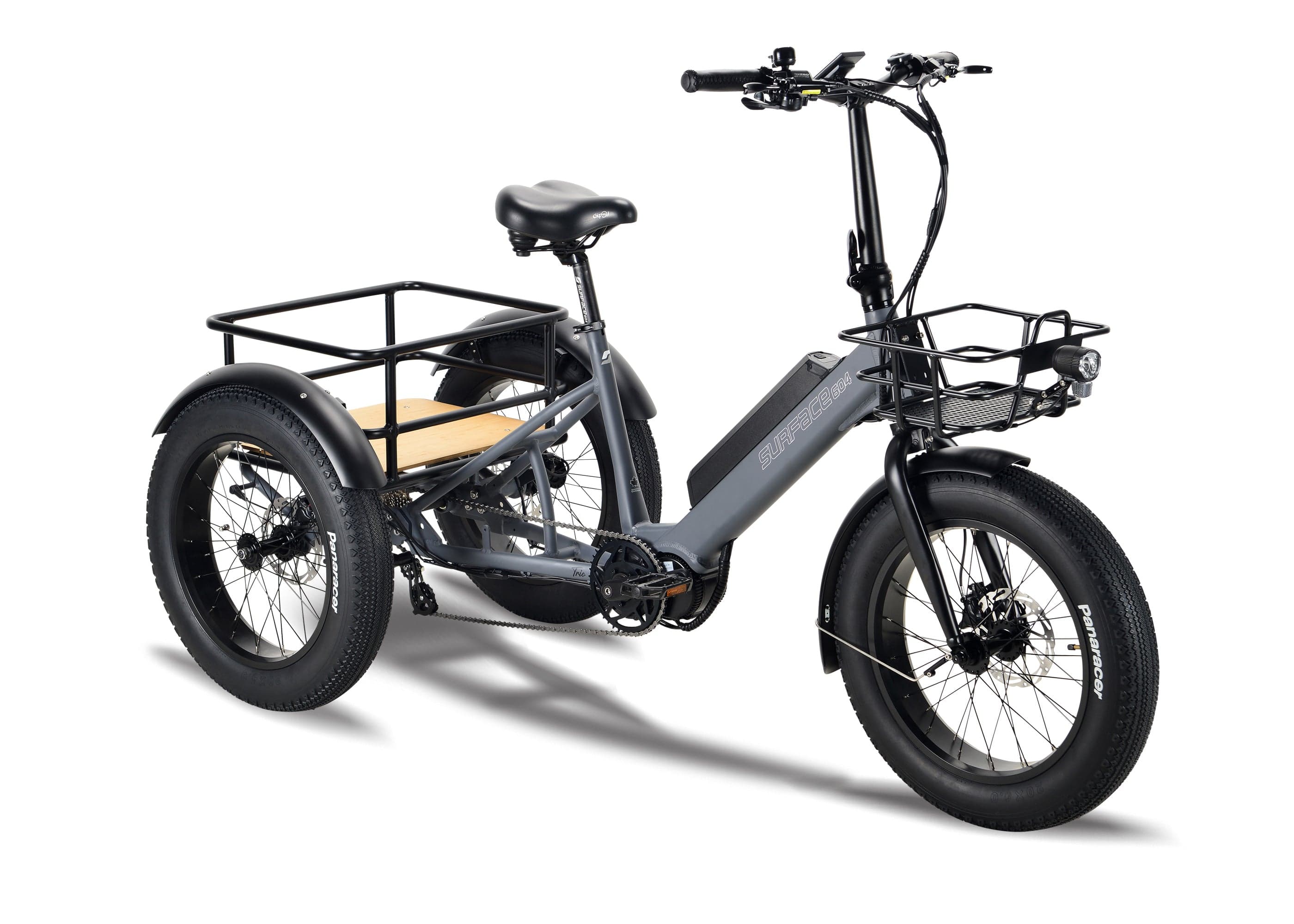

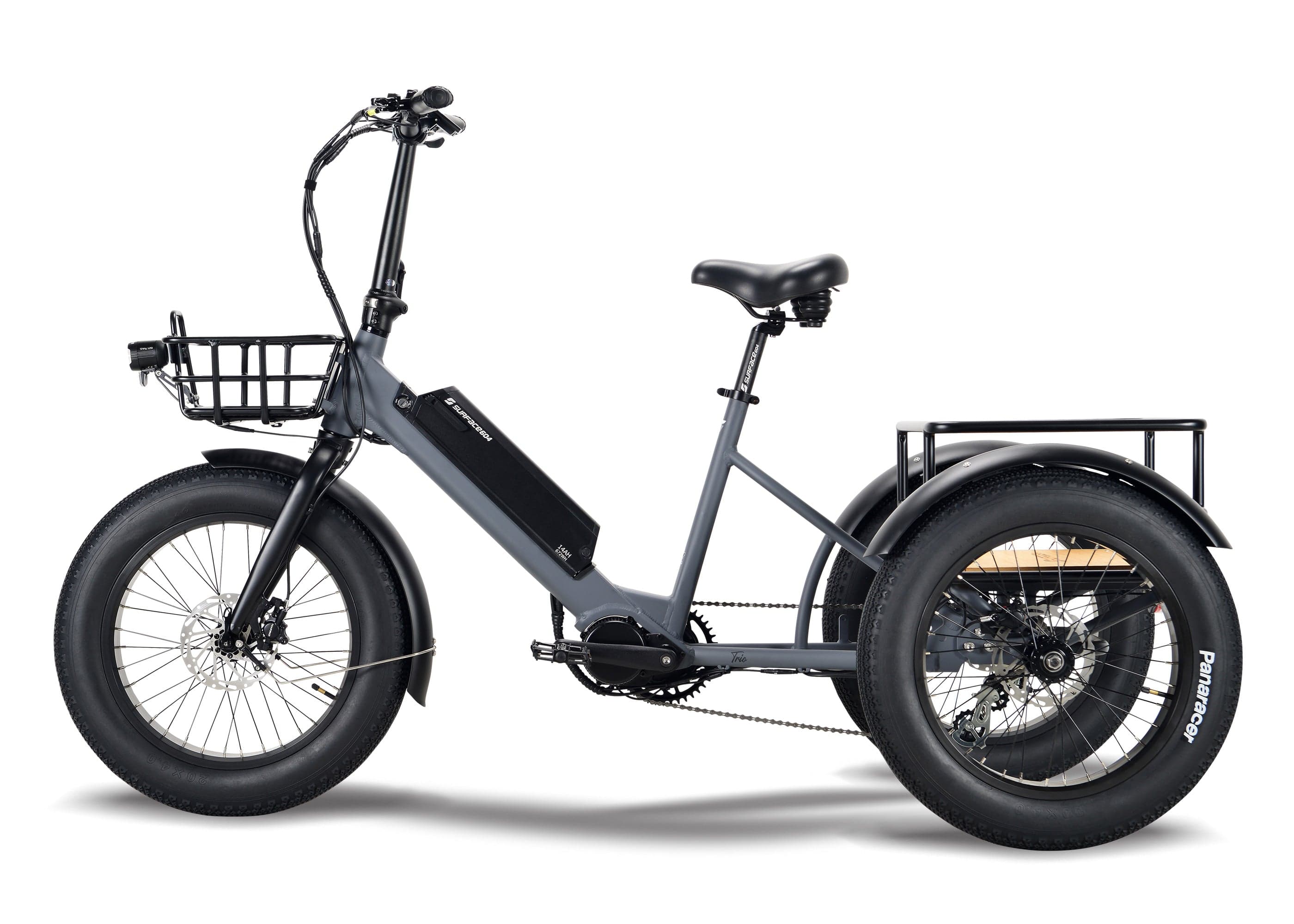

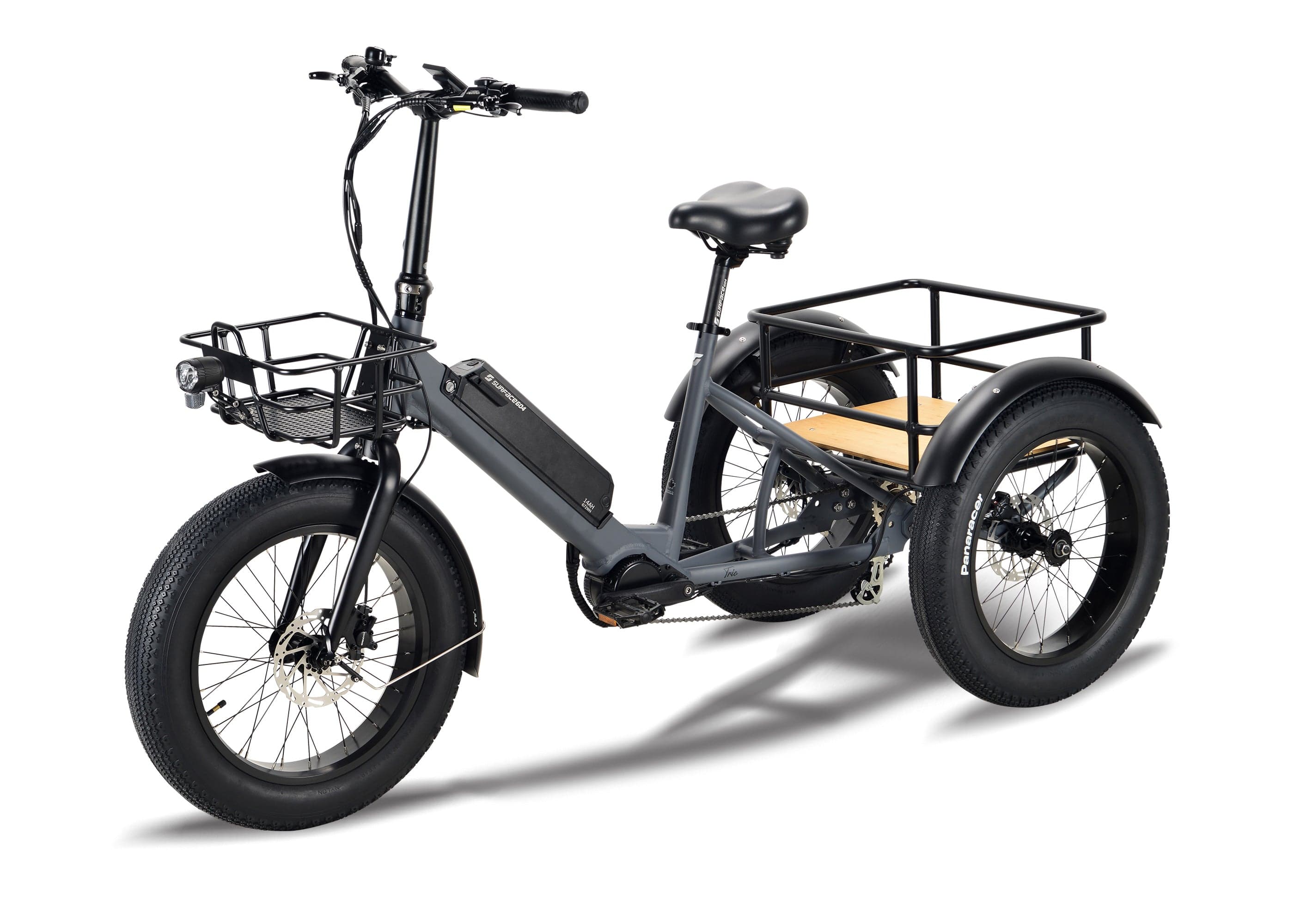

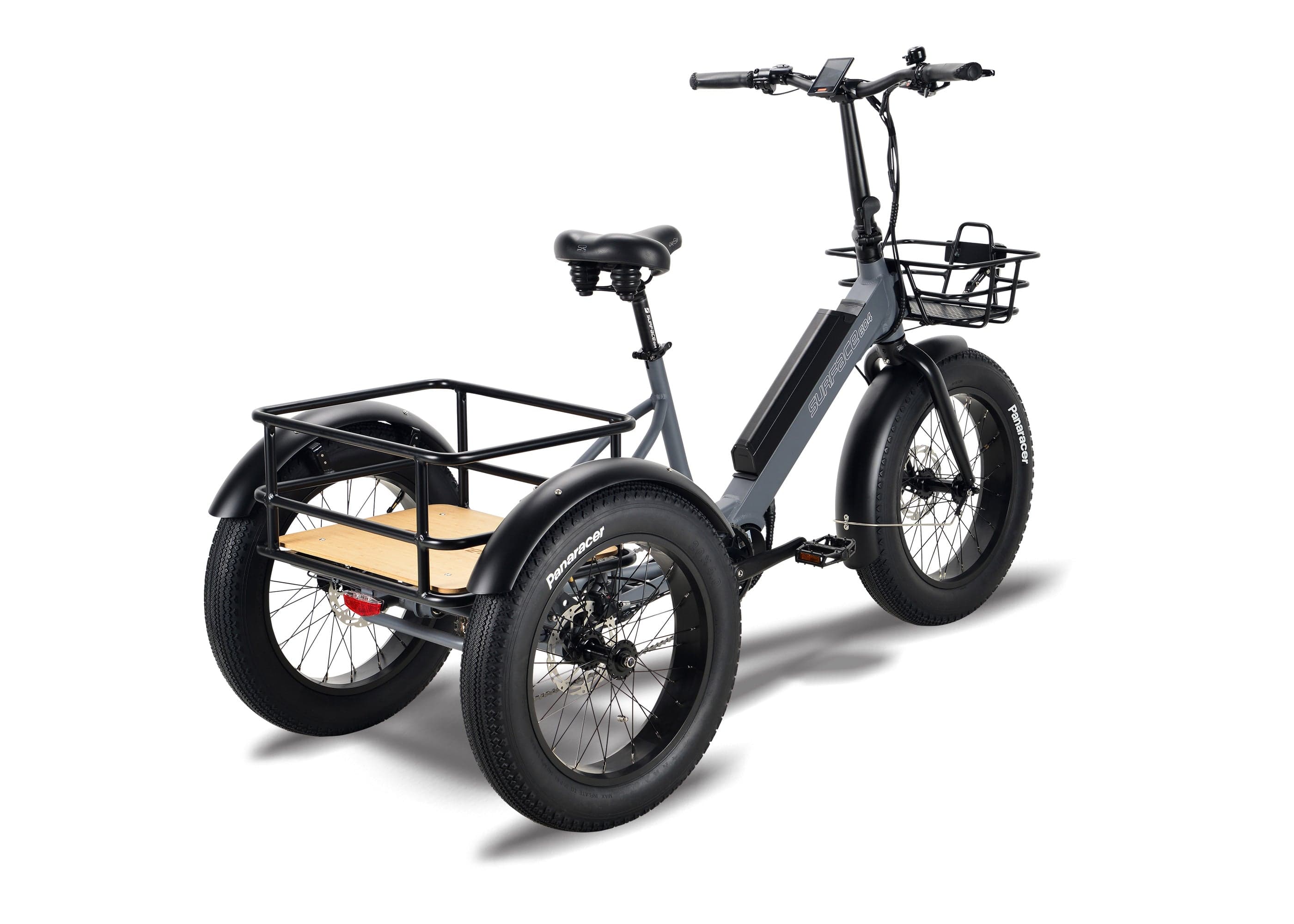

MID DRIVE 3-WHEEL and heavy-duty trike, Surface 604 Trio Step-Thru Commuter eTrike can hall huge amounts of equipment. Mid-drive motor position allows for much better stability. Read more ↓
Color Grey
Add-ons our mechanics recommend.
Hand-picked by the eBikes Calgary shop floor and fitted free when you collect.
Built for Calgary roads.
MID DRIVE 3-WHEEL and heavy-duty trike, Surface 604 Trio Step-Thru Commuter eTrike can hall huge amounts of equipment. Mid-drive motor position allows for much better stability.
MID DRIVE 3-WHEEL and heavy-duty trike, Surface 604 Trio Step-Thru Commuter eTrike can hall huge amounts of equipment. Mid-drive motor position allows for much better stability.
Why this bike
- 105 km
Goes the distance
Calgary-distance range on a single charge. Pathway routes, side streets, and the LRT haul home — all in one tank.
- 80 Nm
Climbs anything
Torque-sensing mid-drive that pulls Crescent Heights, Nose Hill and the bow-river escarpment without breaking a sweat.
- 204 kg
Hauls the load
Built for cargo. Whether it's the weekly Costco run or a kid-seat commute, the frame and rack do the work.
Specifications.
Full factory spec sheet, grouped for scanning.
Motor & Performance
- Motor
- High Torque 500W (Peaks At 750W) Fat Bike Specific Bafang MID DRIVE motor · Mid Drive position adds to the Trikes' stability
- Drive mode
- Cadence only with a Throttle
- Torque
- 80Nm of Torque
- Throttle
- Thumb Push Activated Throttle
- Controller
- SURFACE604 Designed 12 MOS 48V 500W 25Ah, Smart Controller
- Top speed
- 13mph (21kmh)*, Comes as Class 2 · (Unlocked) 20mph (32kmh), as Class 3
- Motor harness
- 30Ah, can handle up to 120C current
Battery & Display
- Battery
- Included: 48V 20Ah / 960Wh · Samsung lithium-ion 21700 cells
- Range (rated)
- Upto 65mi (105km) with a 48V20Ah Battery
- Charge time
- 3-4 Hours for a Full Charge from Empty
- Display
- SURFACE604 Color LCD Display with USB Jack · Bigger display: 3.5"
- Battery weight
- 20AH battery 4.65KG/10lbs
Frame & Suspension
- Fork
- Rigid Cruiser Front Fork - Folding
- Frame notes
- Straight steerer Headtube, height 17.7" (45cm) · Custom Reinforced Battery Mounts · Internal Cable Routing, Post Mount Brakes
- Frame material
- 6061 Aluminum Alloy
- Standover
- Adjustable to the Height of The Rider “One Size Fits All” · 17.5" (BB Center to the tip of the seat tube)
- Rider height
- For Riders: M/L 5’7” - 6’6”
- Weight (rated)
- 42.27KG/93lbs (20AH)
- Max load (rated)
- 450lbs (204kg)
Drivetrain
- Derailleur
- Shimano Altus 7-Speed
- Cassette
- Shimano Altus 7-Speed 12-28T Cassette
- Shift levers
- Shimano Altus 7- Speed Trigger Shifter
- Crank set
- BBS02 Mid Drive 48v
- Bottom bracket
- BBS02 Mid Drive 48v
- Pedals
- WELLGO Platform
- Chain
- KMC 9-Speed
Brakes & Wheels
- Brakes
- Hydraulic Brakes Tektro Auriga Twin HD-T525 · with Parking Lock, E-Trike Specific
- Rotors
- 180mm Front/Rear
- Wheels & tires
- Tires Front/Rear Panaracer Fat 20” X 4.0”
- Rims
- Aluminum Alloy Double Wall Rim
- Hubs
- 1-Piece Forged CNC with 2 Sealed Bearings, Cro-Mo Axle and Alloy QR
Lighting & Extras
- Lights
- BÜCHEL "SHINY 120" LED headlight with 120 lumens · Pre-Wired, Front and Rear Stop Light
- Stem
- Surface604 Adjustable Folding Stem
- Headset
- SAMOX Tapered with Sealed Bearings 1 1/8" - 1 1/2"
- Handlebar
- PROMAX Aluminum, 60mm Rise With 9° Backsweep and 720mm Wide · Added bonus feature - the handle can fold down for easier storage and transportation · Folded height: 84CM - 33" · Unfolded height: 120CM - 47.2"
- Seatpost diameter
- 30.4mm
- Saddle
- Selle Royal "Gipsy" Ergonomic Relaxed Royal Gel Saddle, reduces pressure up to 40% for superior comfort. Resistant to ageing materials.
- Kickstand
- Stable 3 wheel geometry (no kickstand required)
- Standard features
- Folding Handlebar, Water Bottle Bosses, LED Headlight · Extra large back storage basket with (removable) wooden bottom · Front (removable) basket with metal mesh bottom - for extra storage
- Optional upgrades
- Chain Guide
- New for this year
- Mid Drive Motor for Extra stability · Trike Dimensions: L73.6xW31.5xH47.2-inch (187x31.5x120 cm) · Back Cargo Space: L12.7xW17.3xH9.8-inch (55x44x25 cm) · Front Cargo Space: L14.6xW11xH5.1-inch (37x28x13 cm)
More specs
- Motor Watts
- 500
