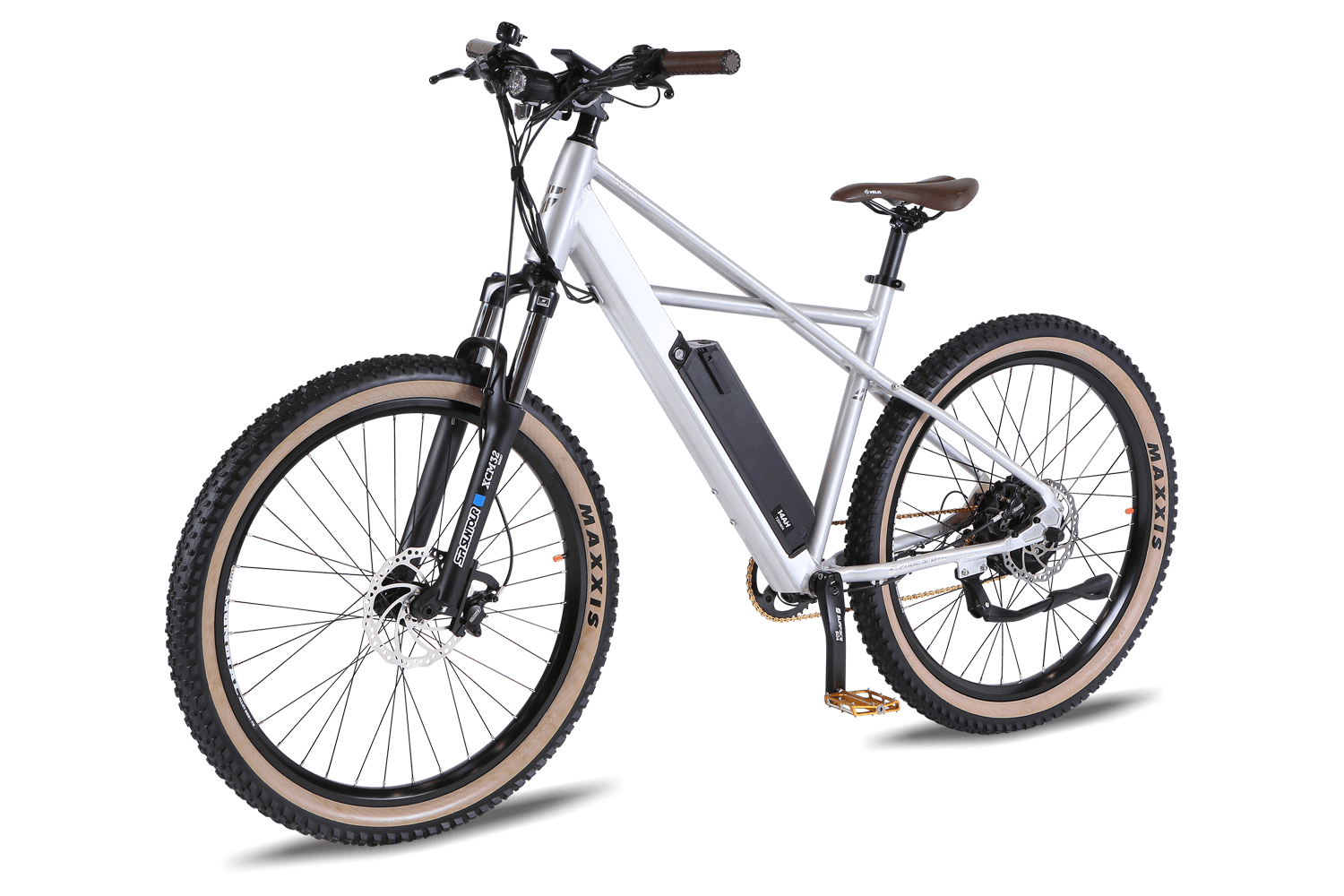

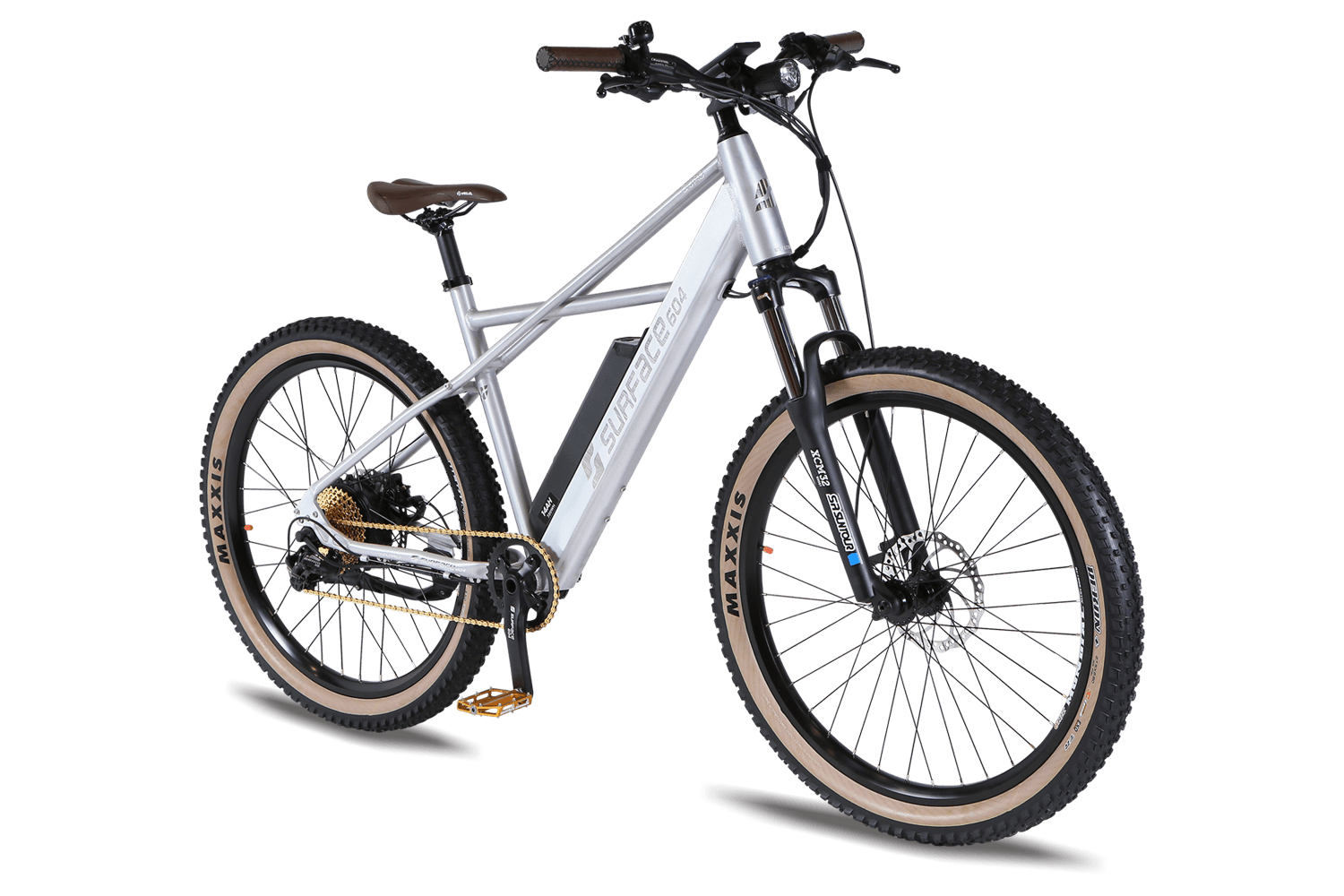

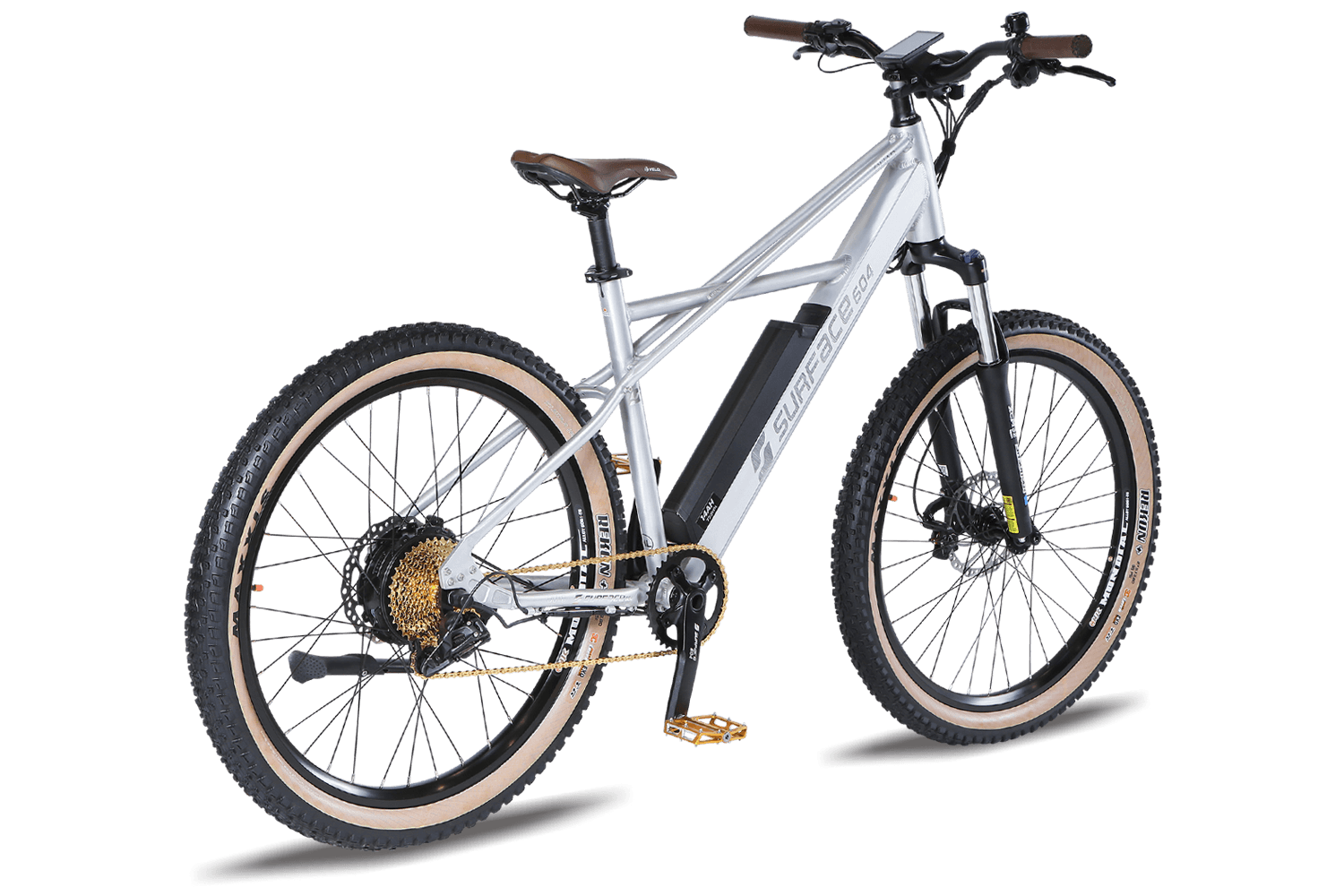

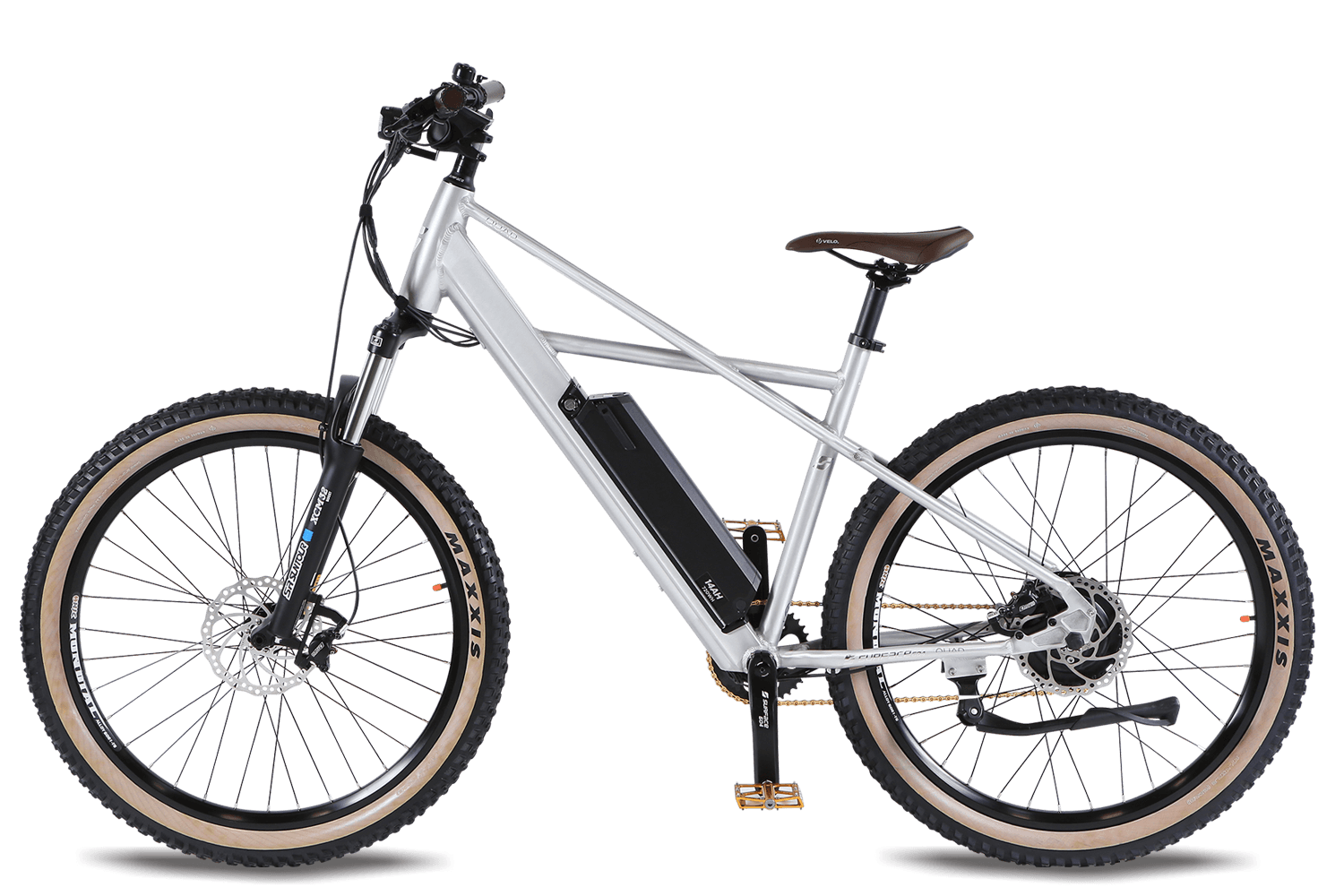

THE QUAD
A streamlined, ergonomic design with robust tires and a comfortable saddle - venture off the beaten path and look great doing it. Read more ↓
Size S/M
Add-ons our mechanics recommend.
Hand-picked by the eBikes Calgary shop floor and fitted free when you collect.
Built for Calgary roads.
A streamlined, ergonomic design with robust tires and a comfortable saddle - venture off the beaten path and look great doing it.
A streamlined, ergonomic design with robust tires and a comfortable saddle - venture off the beaten path and look great doing it.
Why this bike
- 120 km
Goes the distance
Calgary-distance range on a single charge. Pathway routes, side streets, and the LRT haul home — all in one tank.
- rack
Hauls the load
Built for cargo. Whether it's the weekly Costco run or a kid-seat commute, the frame and rack do the work.
- 2 yr
In-house warranty
We sell it, we service it. Two-year warranty backed by our own mechanics — walk in, get help.
Specifications.
Full factory spec sheet, grouped for scanning.
Motor & Performance
- Motor
- eMTB Specific 500W (Peaks At 750W) Bafang Geared Hub Brushless Motor
- Drive mode
- Drop Out Torque Sensing Pedal Assist with a Throttle
- Torque
- 65Nm of Torque
- Throttle
- Thumb Push Activated Throttle
- Controller
- SURFACE604 Designed 12 MOS 48V 500W 25Ah, Smart Controller
- Top speed
- 20mph (32kmh)*, Comes as Class 2 · (Unlocked) 30mph (48kmh), as Class 3
- Motor harness
- 30Ah, can handle up to 120C current
Battery & Display
- Battery
- Included: 48V 20Ah / 960Wh · Samsung lithium-ion 21700 cells
- Range (rated)
- Upto 75mi (120km) with a 48V20Ah Battery
- Charge time
- 3-4 Hours for a Full Charge from Empty
- Display
- SURFACE604 Color LCD Display with USB Jack · Bigger display: 3.5"
- Battery weight
- 20AH battery 4.65KG/10lbs
Frame & Suspension
- Fork
- SR SUNTOUR XCM 32. 29er, 100mm with Axle Thru Hub
- Frame notes
- Straight steerer Headtube, Custom Reinforced Battery Mounts, Internal Cable Routing, Post Mount Brakes
- Frame material
- 6061 Aluminum Alloy
- Standover
- Small-Medium: 28.5” (724mm) · Medium-Large: 30” (762mm)
- Rider height
- For Riders: S/M 5’2” - 5’7”, M/L 5’8” - 6’6” · Frame Sizes: S/M - 17.5", M/L - 19.5"
- Weight (rated)
- 29.55KG/65lbs (20AH)
- Max load (rated)
- 300lbs (136kg)
Drivetrain
- Derailleur
- SRAM X5 9-Speed 1-Piece Forged CNC with 2 Sealed Bearings
- Cassette
- SRAM 12-34T
- Shift levers
- SRAM X5 Trigger Shift
- Crank set
- SAMOX 38T Front Sprocket, 170mm Crank Arms
- Bottom bracket
- SAMOX Sealed Bottom Bracket
- Pedals
- WELLGO Platform, with Die Casting Body, Gold Color
- Chain
- KMC 9-Speed, Gold Color
Brakes & Wheels
- Brakes
- TEKTRO Dorado eMTB Specific Hydraulic Disc, Quad Piston, 180mm Rotor with Motor Inhibitors
- Rotors
- 180mm Front/Rear x 2.34mm Thick
- Wheels & tires
- MAXXIS REKON+ 27.5” x 2.8” Skinwall tires (3C, Exo casing tech)
- Rims
- Aluminum Alloy Double Wall Rim, 27.5″x13Gx36H
- Hubs
- 1-Piece Forged CNC with 2 Sealed Bearings, Cro-Mo Axle and Alloy QR
Lighting & Extras
- Lights
- BÜCHEL "SHINY 120" front headlight with 120 lumens · Pre-Wired To Connect Rear Stop Light
- Stem
- eMTB specific Ergotec Bass 31.8mm
- Headset
- SAMOX Tapered with Sealed Bearings 1 1/8" - 1 1/2"
- Handlebar
- PROMAX Aluminum, 60mm Rise With 9° Backsweep and 720mm Wide
- Seatpost diameter
- 30.4mm
- Saddle
- SR Selle Royal "Nebula" High Density Silicon · Gel Royal GEL material soft and comfortable
- Kickstand
- Adjustable Heavy-Duty Aluminum
- Standard features
- Adjustable Kickstand, Water Bottle Bosses, LED Headlight
- Optional upgrades
- Chain Guide · NCX Suspension Seat Post, Metal Fenders, Rear Rack · Rear Led Light, WREN Inverted 110mm 4.82 Lbs Fork
- New for this year
- Adjustable Kickstand, Water Bottle Bosses · Matching Accents Throughout I.E. Seat · Grips, Tires, Gold Chain, Pedals
More specs
- Motor Watts
- 500
- YouTube Review
- QwnxyElEgxw
